- \(\frac{u^Tx}{u^Tu}u = \frac{22}{100}(6, 8) = (1.32, 1.76)\)

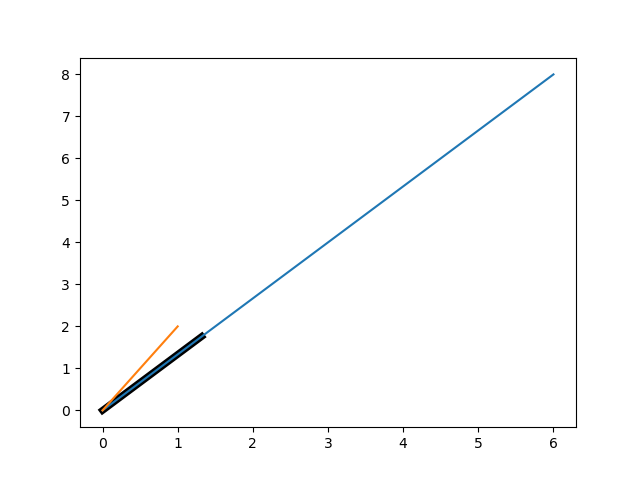

import matplotlib.pyplot as plt
fig, axes = plt.subplots()
x1 = (0, 1.32)
y1 = (0, 1.76)
x2 = (0, 6)
y2 = (0, 8)
x3 = (0, 1)
y3 = (0, 2)
axes.plot(x1, y1, color="black", linewidth=5)
axes.plot(x2, y2)
axes.plot(x3, y3, markevery=[-1])
fig.savefig("1.png")

2

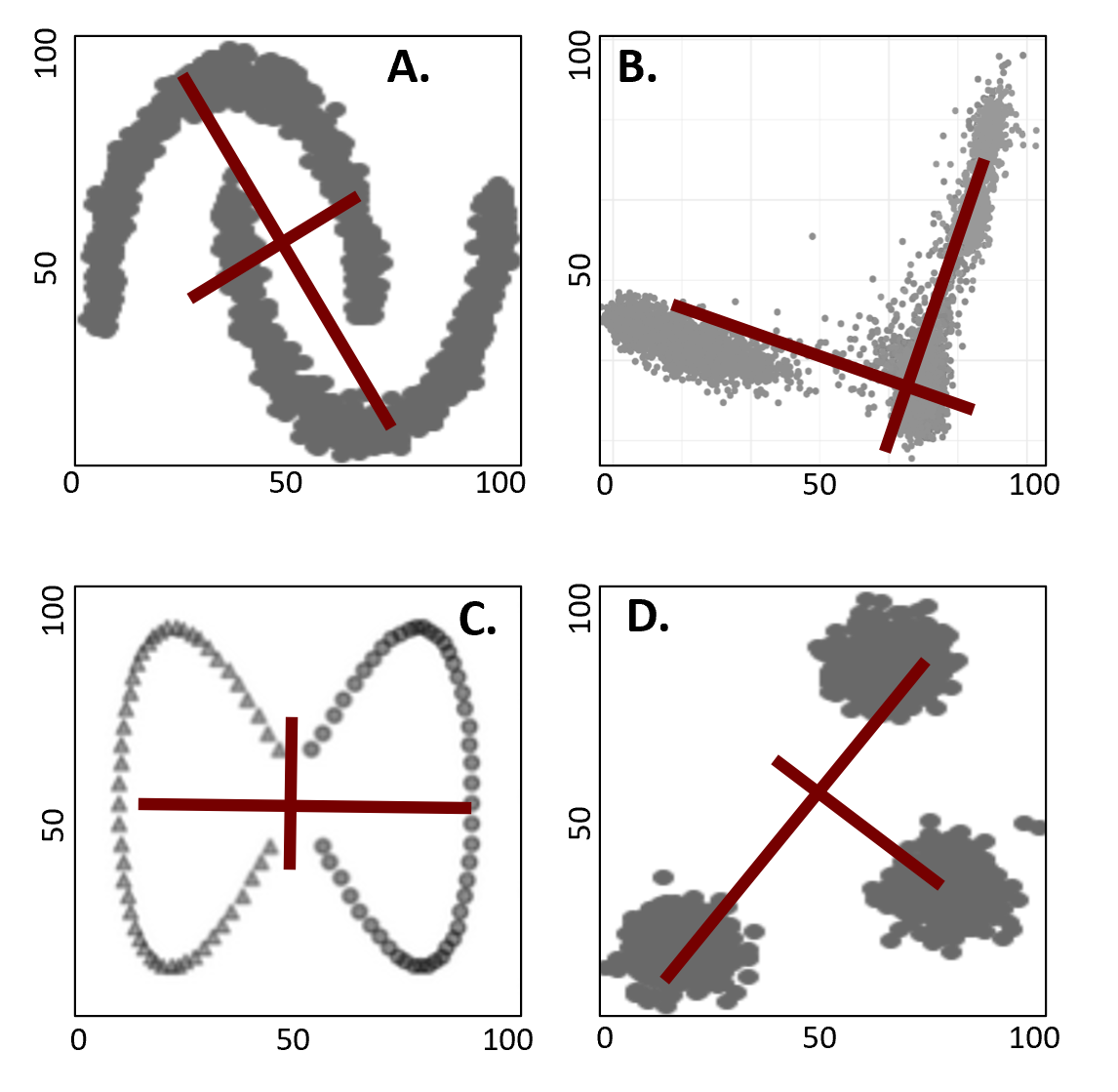

- 1 of the plots was roughly parallel to the original axis. This stems from the fact that 2 dimensions of pca will form an ellipse in 2 dimensions to surround the data. Most of the data was spread in ways that did not facilitate an ellipse with parallel axes.
3
-
\(\sigma_{jk} = \frac{\sum^n_{i=1}(x^j-\mu_x)(x^k-\mu_x)}{n}\) is the covariance for a particular element in the covariance matrix (known to be true).
-
\(\Sigma = \frac{\sum^n_{i=1}(x_i-\mu)(x_i-\mu)^T}{n} = \frac{\sum^n_{i=1}A_i}{n}\)
-
\(A_i = (x_i-\mu)(x_i-\mu)^T = \begin{bmatrix} x^1_i -\mu&& x^2_i-\mu && ..&& x^d_i -\mu\end{bmatrix} \begin{bmatrix} x^1_i-\mu\\ x^2_i -\mu\\ ..\\ x^d_i -\mu\end{bmatrix} =\)
-
\(\begin{bmatrix} (x^1_i-\mu)^2 && ... && (x^1_i-\mu)(x^d_i-\mu) \\... && ... && ... \\ (x^d_i-\mu)(x^1_i-\mu) && ... && (x^d_i-\mu)^2\end{bmatrix}\)
-
This shows that any particular \(a \in A_i\) has the form \(a_{jk} = (x^{j}_i-\mu)(x^{k}_i-\mu) \)
-
This is the same as the numerator of the covariance equation before the summation.
-
\(a_{jk} \rightarrow \frac{\sum^n_{i=1}a_{jk}}{n} = \sigma_{jk}\)
-
\(\Sigma = \frac{\sum^n_{i=1}(x_i-\mu)(x_i-\mu)^T}{n} = \frac{\sum^n_{i=1}A_i}{n} = \begin{bmatrix} \frac{\sum^n_{i=1}a_{1,1}}{n} && ... && \frac{\sum^n_{i=1}a_{1,k}}{n} \\... && ... && ... \\ \frac{\sum^n_{i=1}a_{j,1}}{n} && ... && \frac{\sum^n_{i=1}a_{jk}}{n}\end{bmatrix} = \begin{bmatrix} \sigma_{1, 1} && ... && \sigma_{1, k} \\ ... && ... && ... \\ \sigma_{j, 1} && ... && \sigma_{j, k}\end{bmatrix}\)
-
Since the summation and division by scalar has the same properties with matricies as with scalars, both of these operations affect each of the elements of the matrix as if they were not in the matrix. So since the summation and division operations are the same in the formula for \(\Sigma\) as well as \(\sigma_{xy}\) it can be said that the equation for \(\Sigma \) is true.
4
a.
The largest eigenvalue (4.26) is the one that corresponds to the direction of the most variance. The smallest eigenvalue (0.84) is one that corresponds to the least variance. This can be intuitively understood because the covariance matrix in the new basis is the eigenvalues on the diagonal.
b.
\(\begin{bmatrix} 4.26 & 0 & 0 & 0 & 0 & 0 \\ 0 & 3.14 & 0 & 0 & 0 & 0 \\ 0 & 0 & 2.0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1.92 & 0 & 0 \\ 0 & 0 & 0 & 0 & 1.03 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0.84 \end{bmatrix} \)
c.
The total variance is the sum of the eigenvalues (4.26 + 3.14 + 2.0 + 1.92 + 1.03 + 0.84 = 13.17 ). The total variance does not change with basis, which is what occurs during the pca and eigenvalue decomposition.
5.
- Input: \(D_{n \times k}, \epsilon\)
- \(\mu_k = \frac{1}{n}\sum^n_{i=1} x_i\) Compute the mean
- \(Z_{n\times k} = D_{n \times k} - 1 \cdot \mu^T\) Center the data
- \(\Sigma = \frac{1}{n}(Z^TZ) \) compute the covariance matrix
- \(\lambda_k, V_{n \times k} = eig(\Sigma)\) compute eigenvectors, eigenmatrix
- \(f(r) = \frac{\sum^r_{i=1}\lambda_i}{\sum\lambda_k}\) define fraction of total variance function, sum of first r eigenvalues in \(\lambda_k\) divided by the sum of all eigenvalues in \(\lambda_k\)
-
r = 1; while f(r) < (1-
\(\epsilon\)); r++
; find lowest value of r to meet criteria -
r=r-1
- \(U_r = (u_1, u_2 ... , u_r)\) reduced basis
-
return
\(D' = \{d'_i | d'_i = U^T_rx_i, \text{for } i = 1, ..., n\}\)
